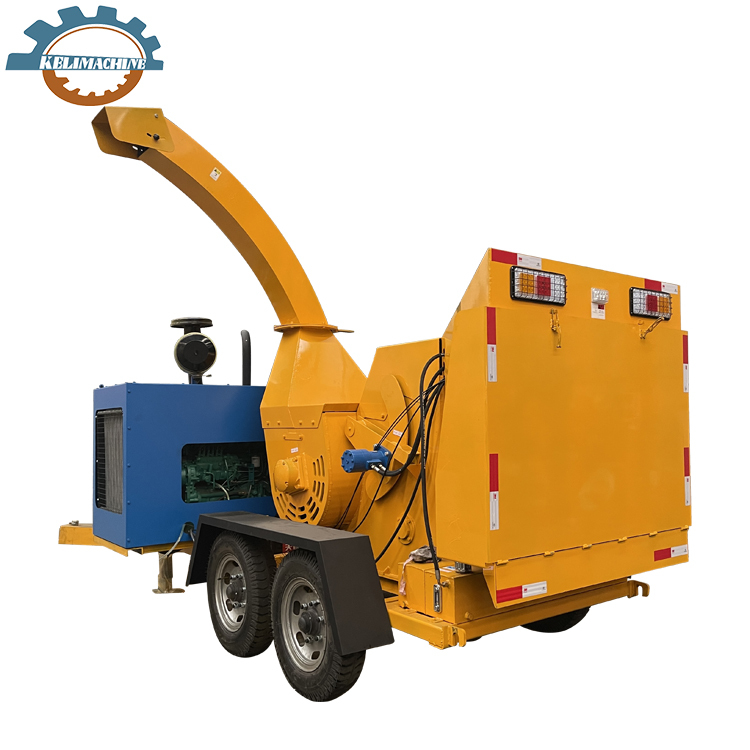

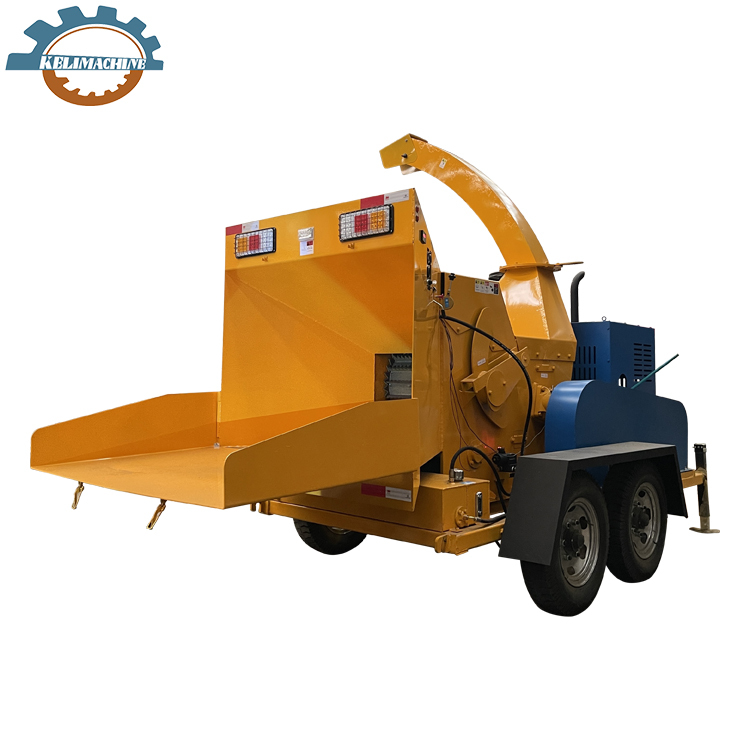

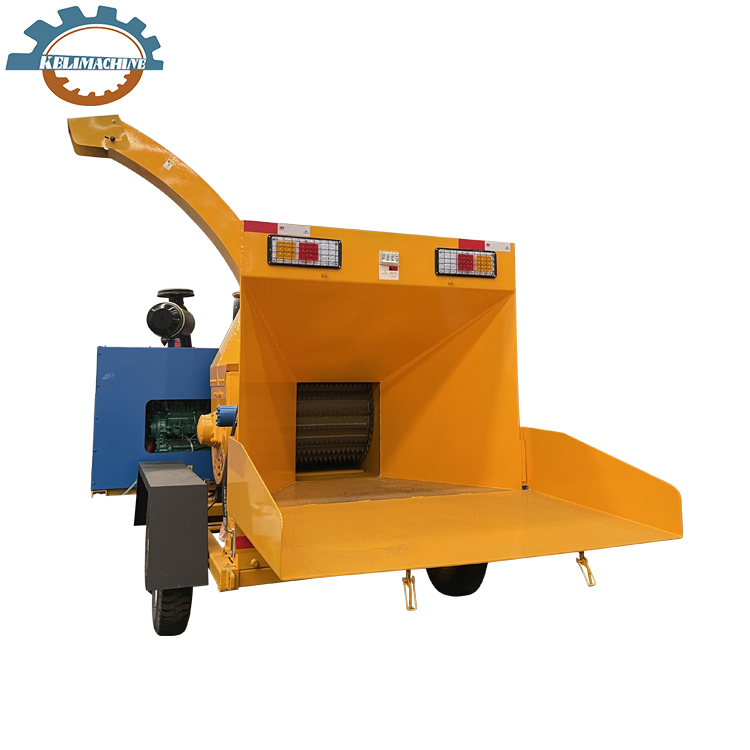

HY-6130 Branch Crusher for Wood or Cattle Feed

HY-6130 Branch Crusher for Wood or Cattle Feed Specification

Product Type
HY-6130 Branch Crusher for Wood or Cattle Feed

General Use
Mill Crusher

Capacity
1-2 T/hr

Weight (kg)
800 Kilograms (kg)

Computerized
No

Automatic
Yes

Grinding Wheel Speed
2200 RPM

Feature
High Performance, ECO Friendly, Low Noise, Lower Energy Consumption, High Efficiency

Warranty
1 Year

HY-6130 Branch Crusher for Wood or Cattle Feed Trade Information

Minimum Order Quantity
1 Set

FOB Port
Shanghai, Tianjin, Guangzhou, Ningbo

Supply Ability
100 Sets Per Month

Delivery Time
35 Days

Packaging Details
Container

Main Export Market(s)
Asia, Australia, Central America, Western Europe, Middle East, North America, South America, Eastern Europe, Africa

Main Domestic Market
All India

Certifications
ISO

About HY-6130 Branch Crusher for Wood or Cattle Feed

We are a prestigious manufacturer of Industrial Branch Crusher in the market It is a powerful and efficient machine designed to process and recycle large quantities of wood waste It can handle logs branches leaves and other organic materials up to a diameter of 200mm Industrial Branch Crusher features a heavy duty rotor with sharp blades which can easily chop the materials into small pieces The machine is equipped with a hydraulic system that allows for easy feeding of the materials and can also adjust the size of the output according to the needs of the users It finds application in the forestry industry paper mills sawmills and other businesses that deal with wood waste

Branch shredders is a kind of wood shredding equipment suitable for processing small wood Therefore its raw materials are generally small branches bushes tea trees straws and so onAlso can be used in the material preparation section of industrial production such as papermaking MDF and biomass power plants If the feed wood is too large or hard the load of the diesel engine is too large the feeding roller can be manually controlled to reverse

Main technical parameters

Model

HY6130

HY6145

Cutter diametermm

300

500

Matching power

32HP diesel engine

R4105ZP Turbocharged 74kw

Startup method

Electric start

Host speedrmin

2200

1800

Number of cutters

Dynamic knife 3 piecesfixed knife 1 piece

Dynamic knife 6 piecesfixed knife 1 piece

Cutter lengthmm

300

230

Feeding roller diametermm

280

600

Feeding stall

InStopReverse 3 gears manual control

Feeding throat sizemm

300200

450380

generator powerW

600

Battery specifications

12V 105AH

24V 105AH

Discharge system

Free 360 rotation with automatic injection discharge

Cutting System

Rolling longitudinal cutting

Productivityth

Mobile form

Foldable hand crank jack slipper type

Discharge heightm

Machine weightkg

800

2800

Hydraulic feeding system

The pressure roller is automatically adjusted in height and hydraulically fed with reasonable structure and automatic feeding which is safe and convenient

Manganese steel hob

The blade is made of manganese steel The knife is tough wearresistant sharp in cutting not easy to rust corrosionresistant and has a longer service life than ordinary steel knives

High strength tooth roll

It has the characteristics of wear resistance and high temperature resistance which increases the stability and reliability of the machine prolongs the service life and increases the operating efficiency

Brand car hub wheel

Equipped with branded car wheel tires which are durable and reliable

Performance characteristics

Traction type mobile fearless of a variety of terrain strong adaptability

Reasonable structure simple operation 360 automatic material spray

Air flow impact strong power complete crushing

Real material solid and durable beautiful appearanc
