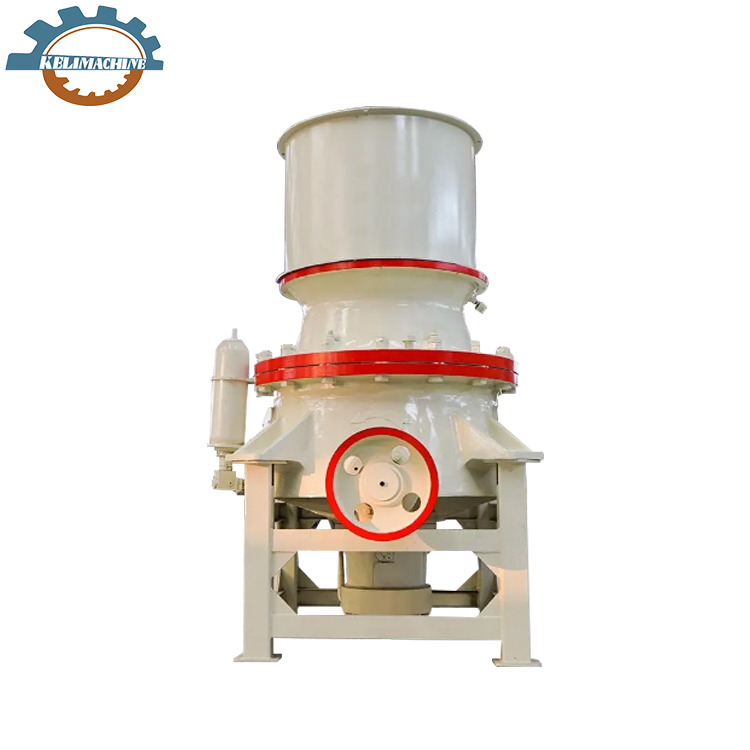

Single Cylinder Hydraulic Cone Stone Crushing Machine

Single Cylinder Hydraulic Cone Stone Crushing Machine Specification

Product Type
Single Cylinder Hydraulic Cone Stone Crushing Machine

General Use
Industrial

Material
Stainless Steel

Capacity
80-190 T/hr

Computerized
No

Automatic
Yes

Voltage
220-440 Volt (v)

Feature
ECO Friendly

Color
White

Warranty
1 Year

Single Cylinder Hydraulic Cone Stone Crushing Machine Trade Information

Minimum Order Quantity
1 Set

FOB Port
Shanghai, Tianjin, Guangzhou, Ningbo

Payment Terms
Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)

Supply Ability
100 Sets Per Month

Delivery Time
35 Days

Packaging Details
Container

Main Export Market(s)
Asia, Eastern Europe, North America, Western Europe, Australia, Middle East, Central America, South America, Africa

Main Domestic Market
All India

Certifications
ISO

About Single Cylinder Hydraulic Cone Stone Crushing Machine

Product Description:

Single Cylinder Cone Crusher

Single Cylinder Cone Crusher is widely used in metallurgy, construction, hydropower, transportation, chemical industry, building materials industry.

SC(S) series single-cylinder hydraulic cone crusher is developed by adopting advanced crushing technology, integrating mechanical, hydraulic, electrical and intelligent control technologies. The new crusher structure, optimized laminar crushing cavity and fully intelligent automatic control system make SC(S) series single-cylinder hydraulic cone crusher have the performance characteristics that traditional cone crusher does not have. It can be widely used in medium crushing, fine crushing and ultra-fine crushing.

Widely used in metallurgy, construction, cement, water conservancy, highway, railroad, mineral processing and other fields, with the role of medium crushing, fine crushing, ultra-fine crushing.

Single-cylinder cone crusher generally has high crushing efficiency, simple operation, low operating costs, energy saving, green environmental protection, easy maintenance, etc., while the crushed material particle size is excellent, the quality is more excellent, so it is quite recognized and favored by the users in the industry, especially by the metal mines, construction of sand and gra vel processing plant is highly sought after, becoming one of the sought-after equipment in the industry.

Model	Cavities	Feeding Size(mm)	Adjusting Range of Discharge Opening (mm)	Capacity(t/h)	Power(kw)
KL-DG100	Coarse	200	20-50	80-190	75-90
	Medium	150	16-40	60-125
	Fine	50	10-30	40-100
KL-DG200	Coarse	250	20-70	160-280	132-160
	Medium	220	16-50	120-230
	Fine	70	10-30	100-210
KL-DG300	Coarse	300	30-80	260-650	220-250
	Medium	240	20-60	200-400
	Fine	100	16-30	150-300
KL-DG400	Coarse	400	35-100	350-750	250-315
	Medium	300	25-70	260-500
	Fine	150	18-40	180-370
KL-DG500	Coarse	500	40-120	480-1050	280-315
	Medium	350	30-80	335-900
	Fine	160	20-50	220-680

Outstanding Advantages

1. Simple structure, strong reliability, easy maintenance, less money spent on operation.

2. Large production capacity, high crushing efficiency and low energy consumption.

3. Combination of various cavities, adapting to the needs of a variety of particle size

4. Long life liner

5. Rolling mor tar wall does not need packing, quick and easy to replace.

6.PLC+touch screen automatic control system ensures the safe operation of the equipment.

In terms of crushing performance, in general, the multi-cylinder hydraulic cone crusher is higher, its crushing force and crushing ratio are larger, the discharge adjusting range is wider, greater flexibility in adjusting the product grade.

It is superior to single-cylinder cone crusher in the performance and quality of crushed products.

However, whether single or multiple cylinders are used in the entire process depends on the entire process layout.

The multi-cylinder hydraulic cone crusher is used to reduce the number of crushing stages and reduce investment. The needle-like content is generally below 15%.
